All Products

Showing all 6 results

  • hlt series self propelled mobile shot blasting cleaning machine (dual purpose for road surface & steel structure)

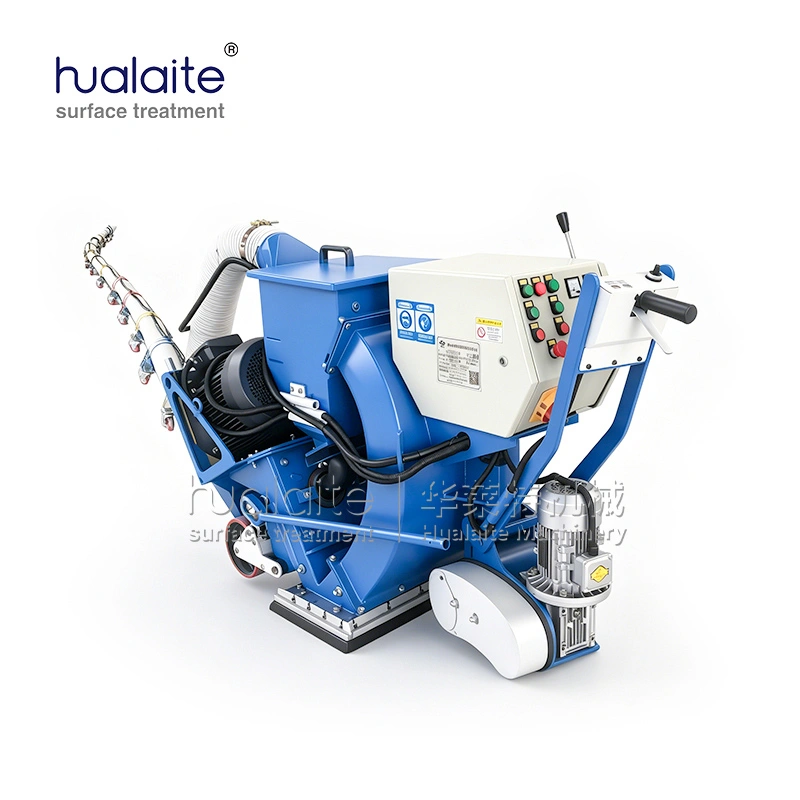

    HLT Series Self-Propelled Mobile Shot Blasting Cleaning Machine (Dual-Purpose for Road Surface & Steel Structure)

    This machine features a self-propelled mobile structure design, equipped with a high-efficiency cantilever centrifugal shot blasting wheel and PLC frequency control system, capable of moving forward, backward, and turning with “clean anytime, leave anytime” flexibility. The enclosed shot circulation system and high-efficiency dust collector enable dust-free, pollution-free operation. Widely applicable for concrete bridge deck waterproofing scarifying, asphalt pavement maintenance, airport runway rubber removal, steel plate rust removal, and tank cleaning on large-area horizontal surfaces, with cleaning quality up to Sa2.5~Sa3 grade.

  • hltq32 series crawler type shot blasting cleaning machine (rubber/steel crawler automatic tumbling blasting equipment)

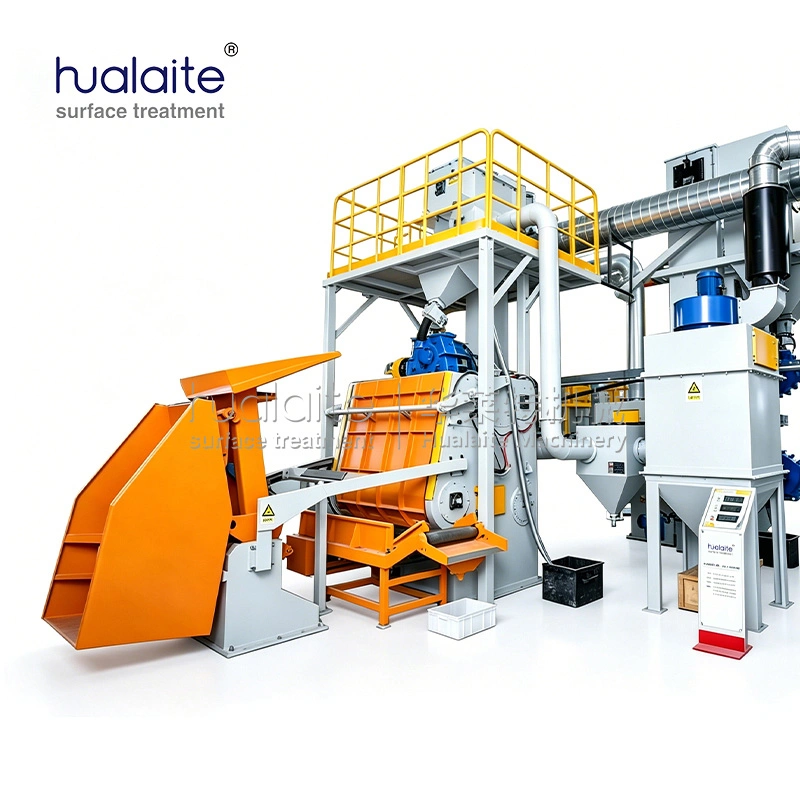

    HLTQ32 Series Crawler Type Shot Blasting Cleaning Machine (Rubber/Steel Crawler Automatic Tumbling Blasting Equipment)

    This machine uses an endless high-strength wear-resistant rubber or manganese steel crawler belt to form a space drum, continuously tumbling workpieces during shot blasting. Equipped with a cantilever centrifugal shot blasting wheel (75~85m/s projection speed), rolled Mn13 chamber liners (60% maintenance cost reduction), BE-type separator, and baghouse dust collector with PLC/frequency automatic control, productivity ranges from 0.24 to 5t/h with loading capacities of 80~800kg. Widely used in foundries, heat treatment plants, and other industries for surface rust removal, sand cleaning, oxide scale removal, and shot peening strengthening of castings, forgings, die-castings, gears, springs, and other small-to-medium workpieces.

  • hook type shot blasting cleaning machine (hlt37 series single/double hook suspension blasting equipment)

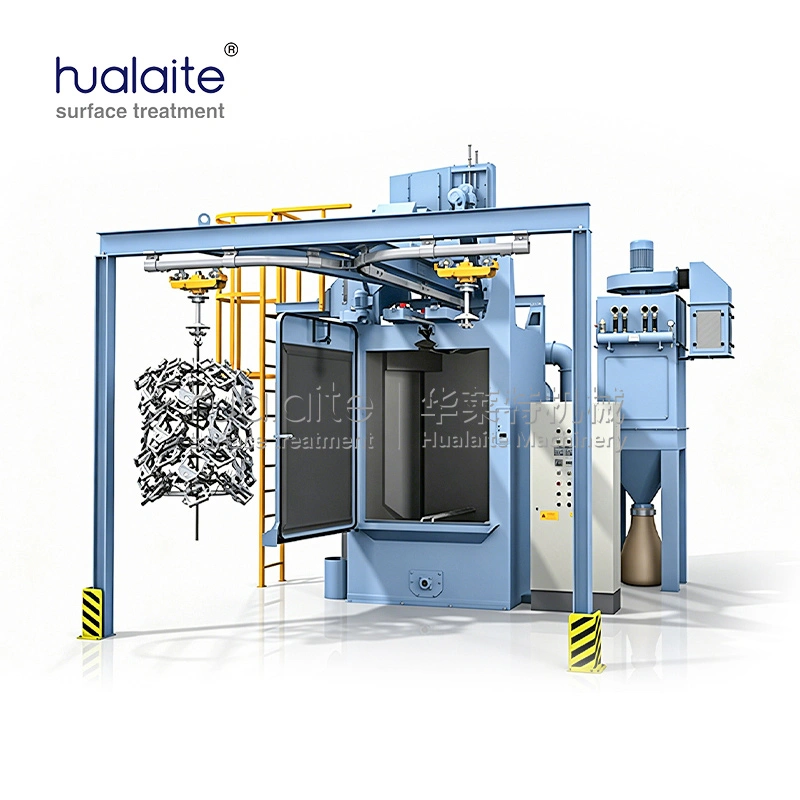

    Hook Type Shot Blasting Cleaning Machine (HLT37 Series Single/Double Hook Suspension Blasting Equipment)

    This machine features suspended hooks that automatically carry workpieces into the blast chamber, with hook functions including lifting, traveling, and in-chamber rotation. Equipped with large-shot-flow cantilever centrifugal blasting wheels and high-manganese steel wear-resistant liners, PLC fully automatic control, single-hook load capacity from 50 to 5000kg (customisable up to 10000kg), cleaning cycle of only 5-7 minutes, and cleaning grade up to Sa2.5. Widely used for surface cleaning and strengthening of castings, forgings, and welded parts in foundry, forging, machinery manufacturing, automotive, and shipbuilding industries.

  • mesh belt continuous pass through shot blasting cleaning machine (hltq series metal mesh belt conveyor blasting equipment)

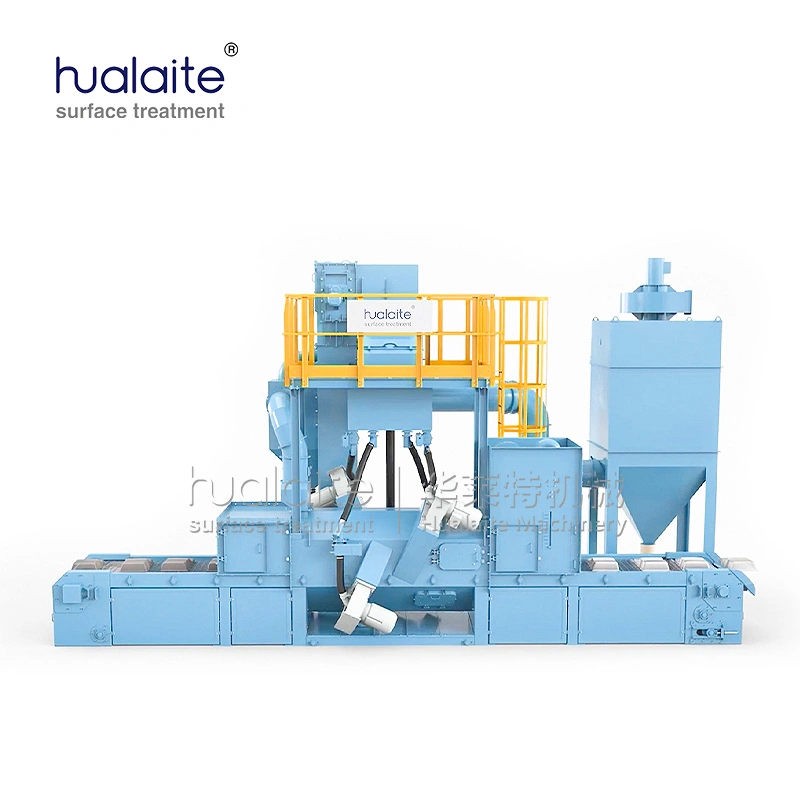

    Mesh Belt Continuous Pass-Through Shot Blasting Cleaning Machine (HLTQ Series Metal Mesh Belt Conveyor Blasting Equipment)

    This machine uses a high-strength metal mesh belt to continuously convey workpieces through the shot blasting chamber, equipped with multiple high-efficiency centrifugal blasting wheels that simultaneously blast from above and below. PLC frequency-controlled automated operation delivers cleaning quality up to Sa2~Sa3 grade, making it particularly suitable for continuous high-volume surface cleaning and strengthening of fragile small-to-medium workpieces such as thin-wall castings, aluminum alloy castings, and ceramic parts—with no collision damage, high efficiency, minimal deformation, and pitless design, widely used in automotive, aerospace, railway, and machinery manufacturing industries.

  • overhead monorail continuous pass through shot blasting machine (hlt38/hlt48/hlt58 series suspension conveyor blasting equipment)

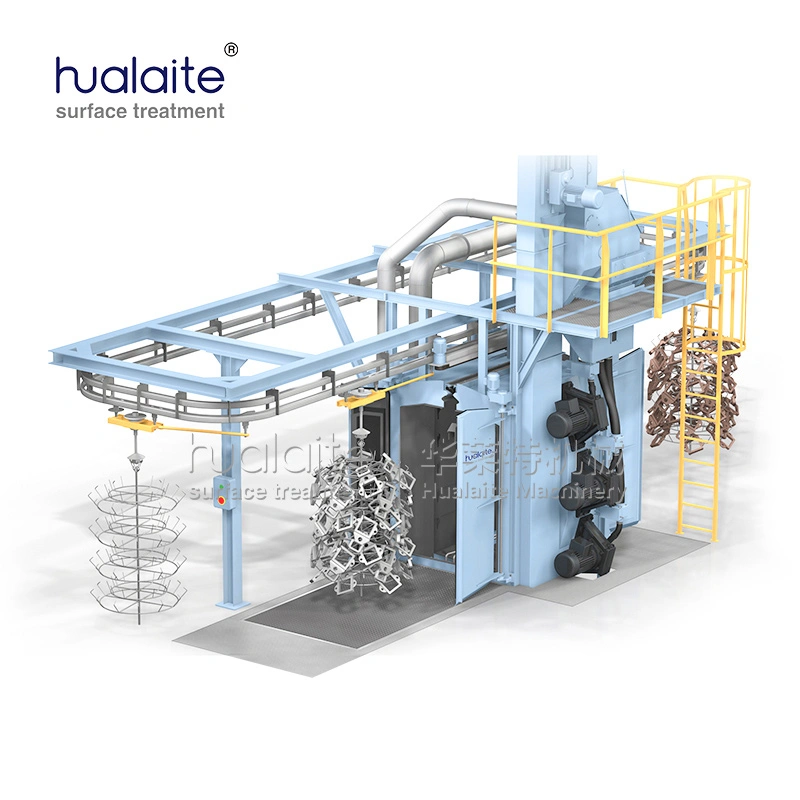

    Overhead Monorail Continuous Pass-Through Shot Blasting Machine (HLT38/HLT48/HLT58 Series Suspension Conveyor Blasting Equipment)

    This machine features an overhead monorail suspension conveyor system with continuous, indexing, or accumulating conveying modes, enabling fixed-point loading/unloading and fixed-point shot blasting. Equipped with high-efficiency cantilever centrifugal blast wheels, ZGMn13 wear-resistant liners, full-curtain separators, and pulse-jet dust collection systems with PLC fully automatic control, single-hook load capacity ranges from 50 to 2000kg. Widely used for high-volume surface cleaning and strengthening of castings, forgings, and welded parts in automotive, engine, motor, and valve industries.

  • roller conveyor continuous pass through shot blasting cleaning machine (hltq69 series steel plate & profile automatic blasting equipment)

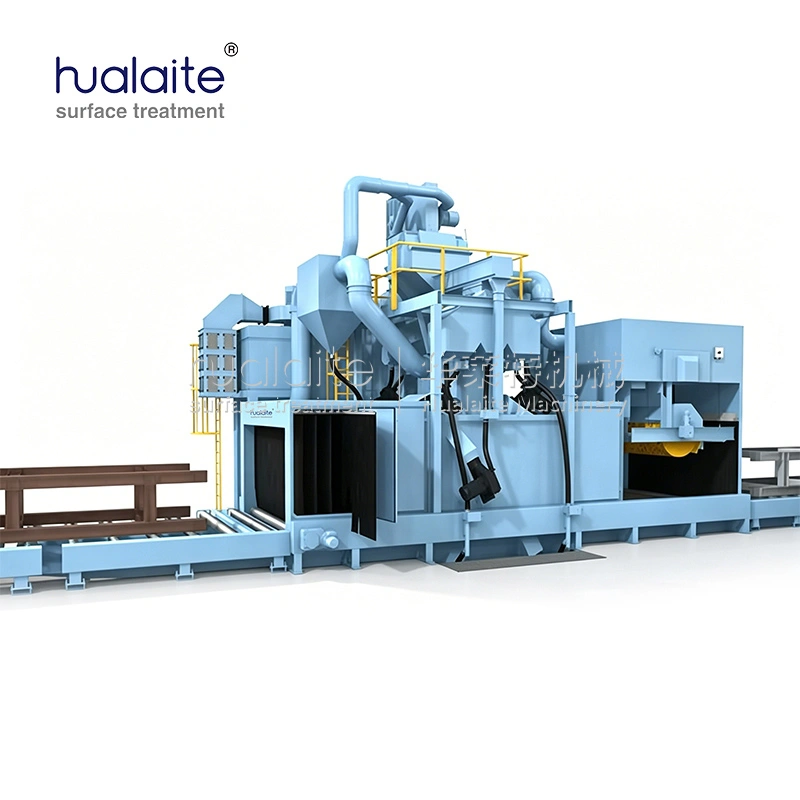

    Roller Conveyor Continuous Pass-Through Shot Blasting Cleaning Machine (HLTQ69 Series Steel Plate & Profile Automatic Blasting Equipment)

    This machine uses a roller conveyor continuous pass-through system to automatically feed steel plates, profiles, H-beams, and large structural parts into the shot blasting chamber, equipped with multiple high-efficiency cantilever centrifugal blasting wheels that simultaneously blast from multiple angles. PLC frequency-controlled automated operation delivers cleaning quality up to Sa2.5~Sa3.0 grade, widely used for rust removal cleaning, stress relief treatment, and pre-treatment before painting of steel surfaces in shipbuilding, automotive, bridge, and building industries—continuous high efficiency, uniform coverage, and multi-purpose.
