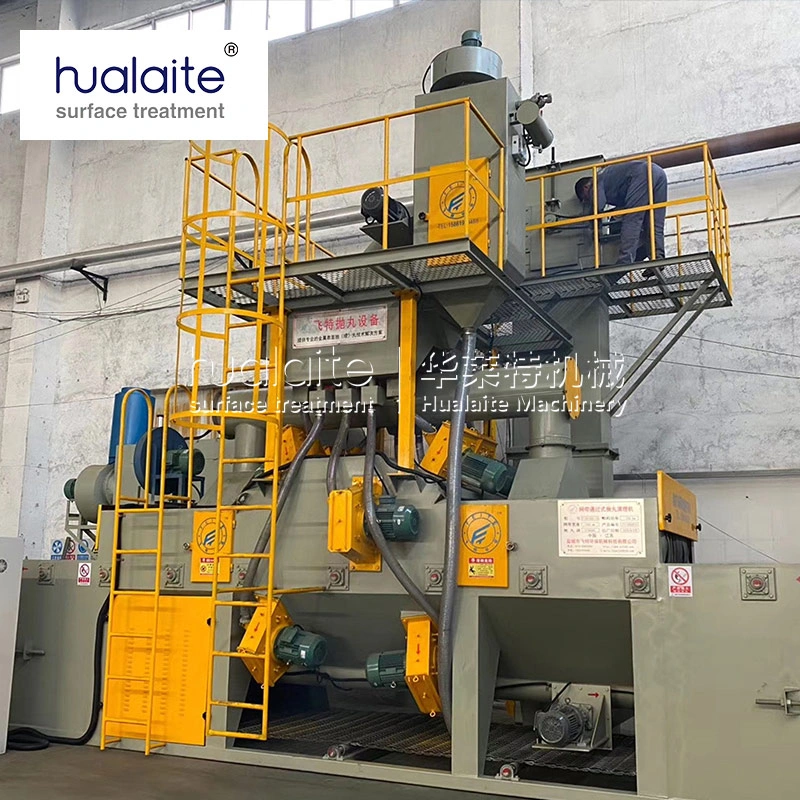

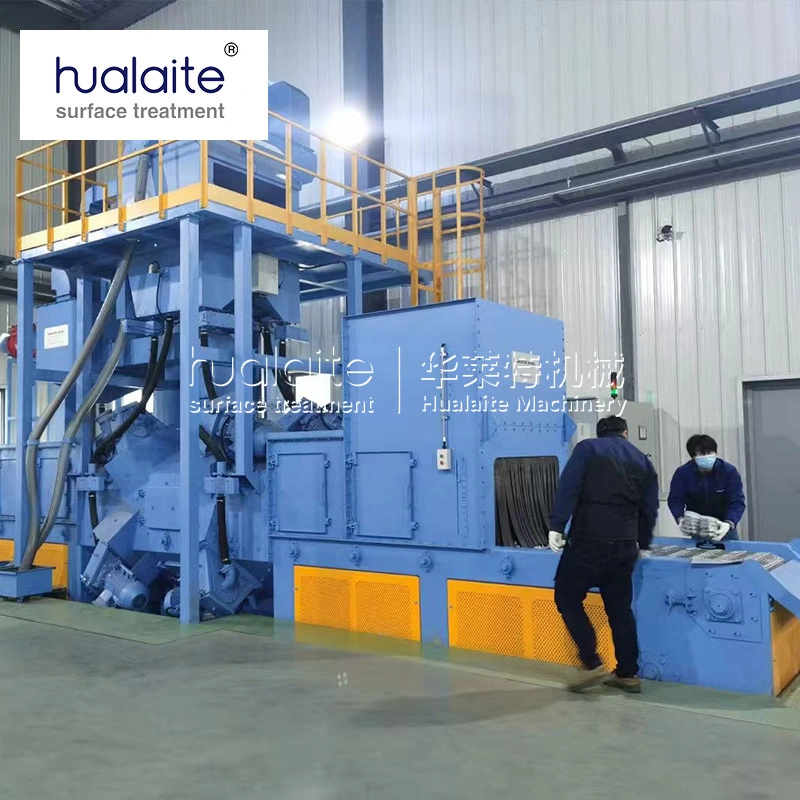

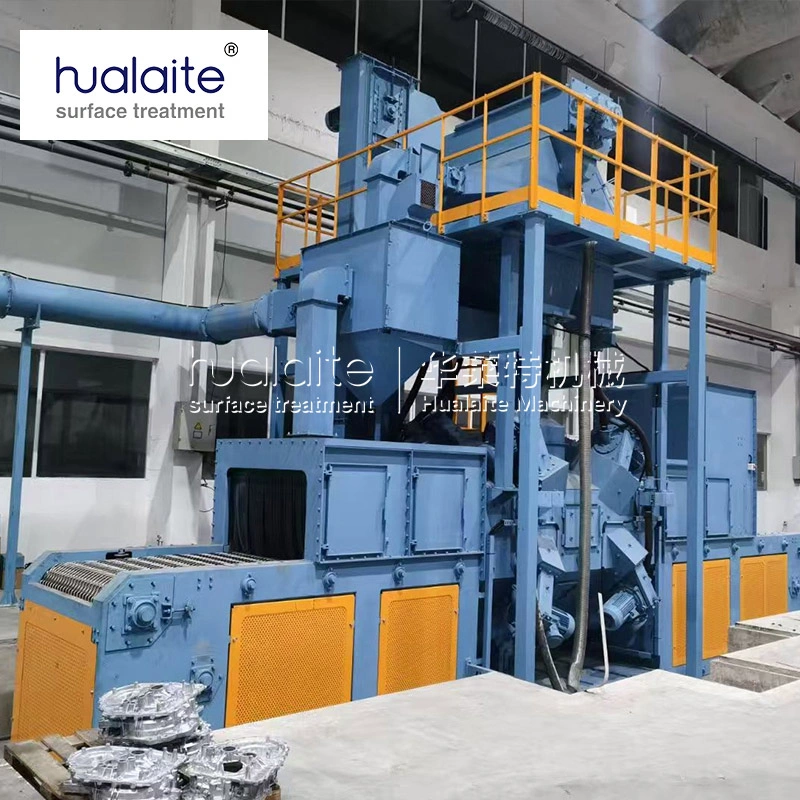

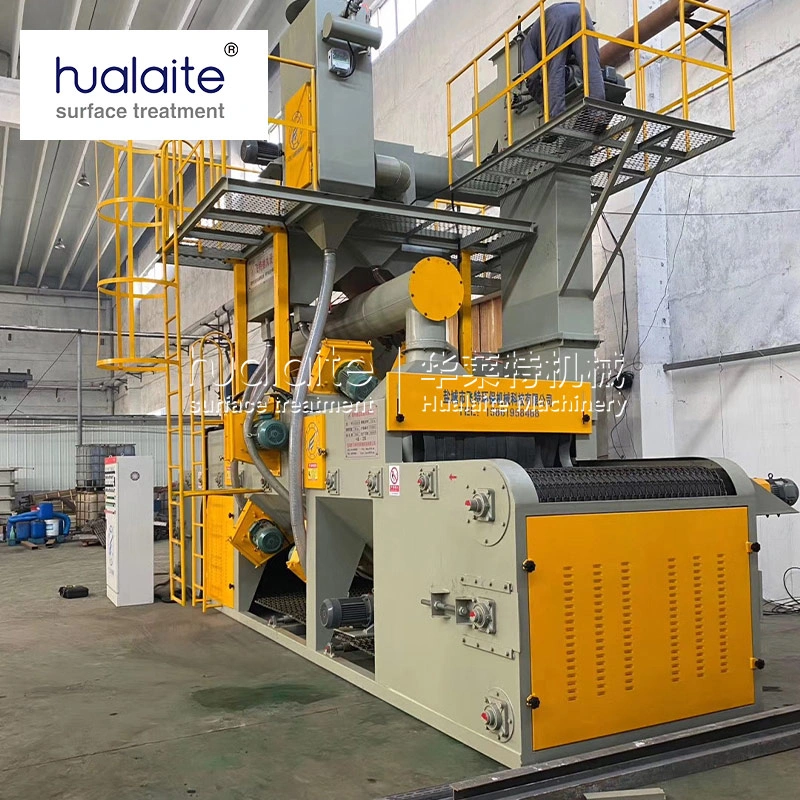

Mesh Belt Continuous Pass-Through Shot Blasting Cleaning Machine (HLTQ Series Metal Mesh Belt Conveyor Blasting Equipment)

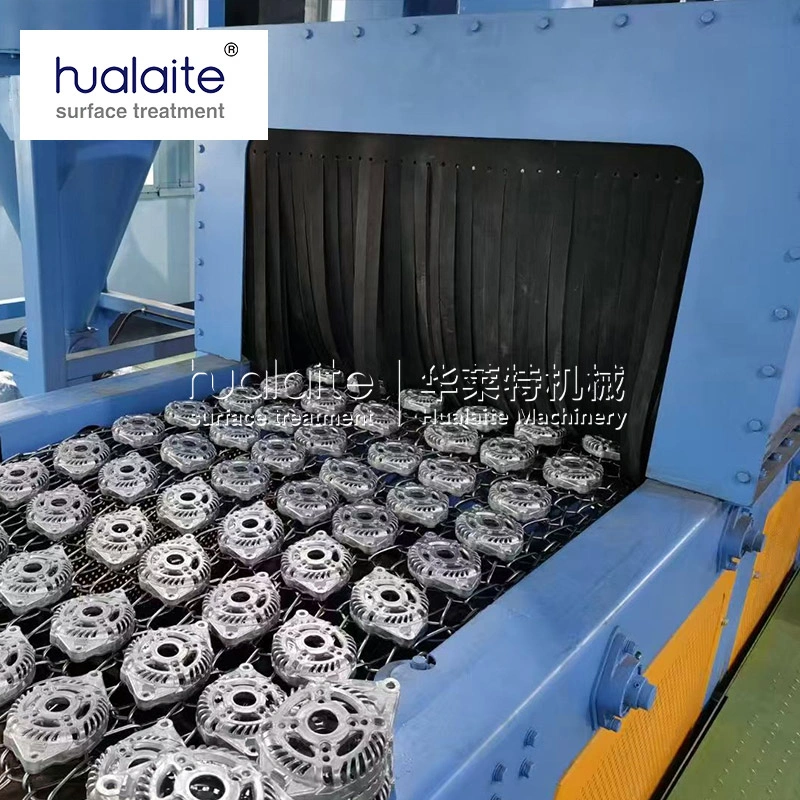

This mesh-belt shot blasting machine is an automated surface treatment system that utilizes a metal mesh belt to continuously transport workpieces through the blasting chamber. Its core operating principle is as follows: workpieces are placed onto the conveyor mesh belt via a loading mechanism, and the belt—driven by a variable-frequency drive—continuously feeds them into the enclosed blasting chamber. Inside the chamber, high-speed rotating blast wheels accelerate the abrasive media (shot) using centrifugal force, creating a dense, fan-shaped stream that strikes the workpiece surfaces uniformly from multiple directions. The impact and cutting action of the shot effectively remove mill scale, molding sand, rust, welding slag, and other contaminants, resulting in a clean, uniform metallic finish. The surface quality of the treated workpieces meets the Sa2 to Sa2.5 standard. After impact, the shot and debris fall through the mesh belt’s apertures into a bottom screw conveyor; a bucket elevator then transports the mixture to a separator to segregate usable shot from slag and dust. Clean shot is recycled, while dust is filtered by a dust collection system to ensure emissions meet environmental standards. The entire cleaning process operates in a continuous cycle, significantly enhancing production efficiency.

Regarding manufacturing and structural quality, the machine comprises several key components: the blasting chamber, blast wheel assemblies, mesh belt conveyor system, bucket elevator, separator, screw conveyor, dust collection system, and electrical control system. The blasting chamber features an enclosed box-like structure welded from high-quality steel plate and structural steel; its interior is lined with wear-resistant alloy plates, ensuring excellent sealing to prevent the escape of shot or dust. The blast wheel assembly—the machine’s core component—consists of an impeller, blades, a distributor, and a control cage. Typically, the system is equipped with 4 to 8 high-efficiency centrifugal blast wheels arranged above and below the chamber to ensure comprehensive coverage from multiple angles. The conveyor utilizes a high-strength rolled Mn13 manganese steel mesh or stainless steel mesh belt, offering superior wear resistance and a long service life. Conveying speed is steplessly adjustable via a variable-frequency drive, allowing for flexible adjustments based on workpiece material and cleaning requirements. The separator utilizes a multi-stage air-wash system featuring a controllable, full-curtain overflow design, ensuring high separation efficiency for shot, debris, and dust. The dust collection system employs either a pulse-jet cartridge collector or a Venturi wet scrubber, offering excellent dust removal performance and a long service life. The entire machine is governed by a fully automatic PLC system integrated with an HMI (Human-Machine Interface) control platform, enabling continuous, automated operation.

This mesh-belt shot blasting machine offers outstanding performance advantages and application value. First, it delivers high continuous production efficiency; the continuous mesh-belt conveyor moves workpieces uninterruptedly through the blasting zone, enabling automated assembly-line production without manual intervention. Second, it eliminates collision damage; workpieces are transported smoothly on the mesh belt without colliding with one another, making it ideal for the surface treatment of thin-walled, fragile, and high-value-added components. Third, it ensures uniform cleaning quality; multiple blast wheels project media simultaneously from various angles (top and bottom), providing consistent coverage with no cleaning blind spots. Fourth, it accommodates high-temperature workpieces; the steel mesh-belt structure allows debris to fall through easily and facilitates heat dissipation, enabling effective cleaning of hot components. Fifth, it minimizes deformation and requires no foundation pit; the compact, pit-less design simplifies installation and reduces investment costs. Sixth, it offers versatility; the machine can operate as a standalone unit or be integrated into an existing production line.

In terms of application, this mesh-belt shot blasting machine is widely used across industries such as automotive, aerospace, railway, engine manufacturing, and general machinery. Typical workpieces include fragile small parts (e.g., thin-walled cast iron or aluminum alloy castings, ceramic components); disc-shaped or plate-like castings and structural parts; automotive components (e.g., engine connecting rods, gears, diaphragm springs); and brake discs and drums. The equipment is particularly well-suited for high-volume, continuous production environments, making it an ideal choice for the surface cleaning and strengthening of thin-walled castings, aluminum alloy parts, and precision components.
