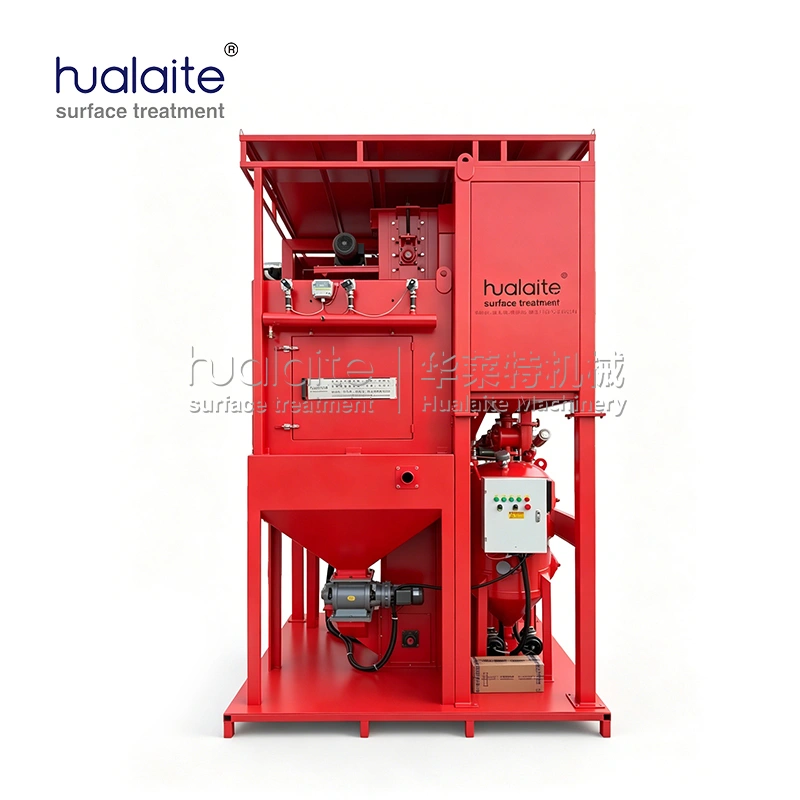

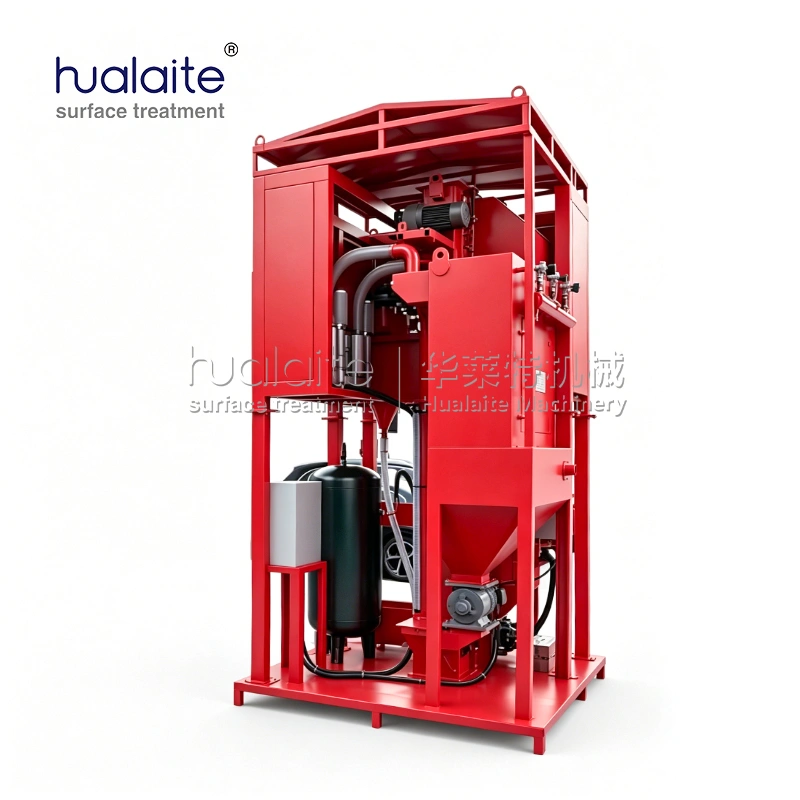

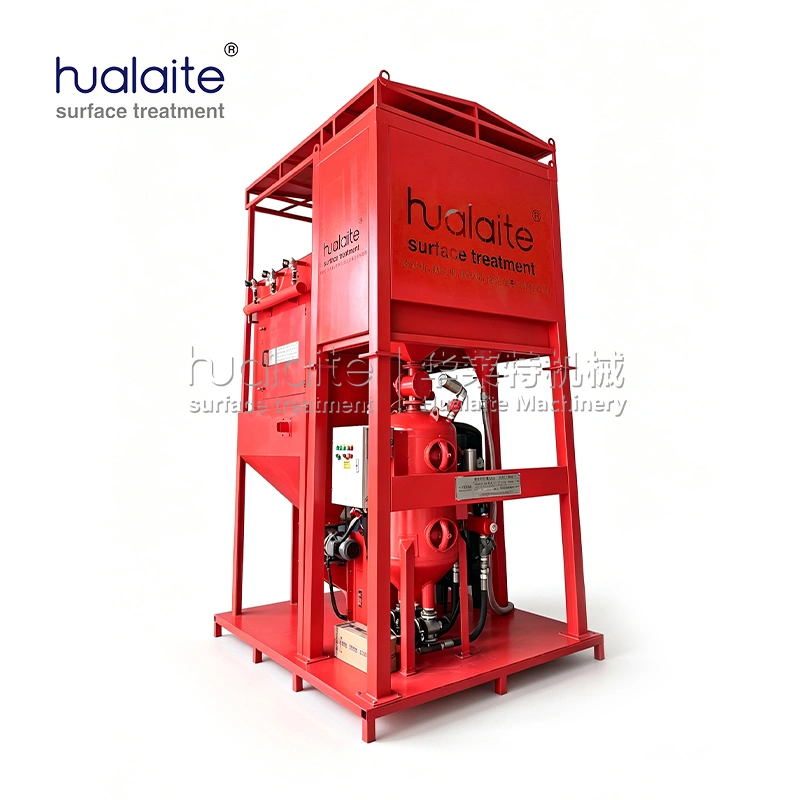

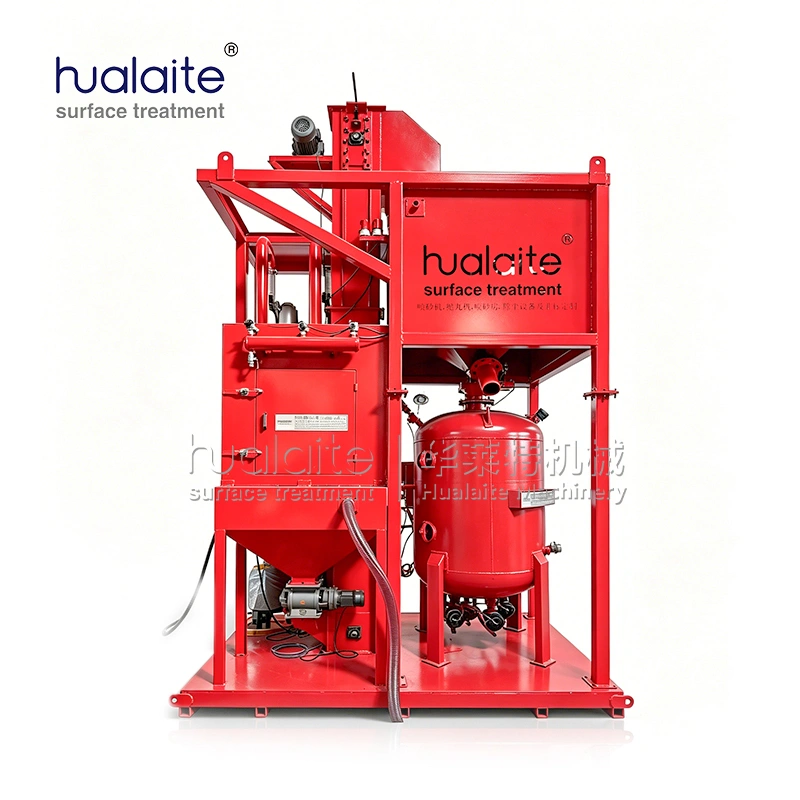

HLT Series Integrated Sandblasting Unit (3-in-1 Surface Treatment Equipment with Blasting/Recovery/Dust Collection)

The HLT series integrated sandblasting unit is a compact surface treatment equipment that highly integrates multiple functional modules including the blasting main unit, abrasive recovery system, dust collection system, and electrical control system into a single rigid frame. The core working principle is: using compressed air as power, which flows at high speed through the blast gun to create negative pressure, drawing abrasive media (such as brown alumina, glass beads, steel grit, etc.) into the gun and propelling it through the nozzle at high velocity onto the workpiece surface; the abrasive removes scale, rust, burrs, and oil contamination through impact and cutting action, while simultaneously creating a certain surface roughness. Unlike traditional split-type blasting equipment, this HLT integrated sandblasting unit combines three major functions—blasting operation, abrasive recycling, and dust filtration—into one compact system. Its working process is: the abrasive-dust mixture generated during blasting enters the built-in cyclone separator through the recovery channel within the unit, where reusable abrasive is efficiently separated from dust—the recyclable abrasive automatically falls into the storage hopper for the next blasting cycle, while the dust-laden air enters the cartridge dust collector for fine filtration before being discharged in compliance with emission standards. The entire blasting, recovery, and dust collection process is completed within a closed loop, eliminating the need for external bulky dust collection equipment and complex piping systems.

In terms of manufacturing quality and structural integrity, the body of this HLT integrated sandblasting unit is welded from high-quality cold-rolled steel plates of no less than 3mm thickness, with interior and exterior surfaces finished by electrostatic powder coating for excellent corrosion resistance and impact resistance. The entire machine features a modular integrated design that compactly arranges the blasting main cabin, turntable or crawler conveyor system, gun oscillation mechanism, compressed air system, abrasive recovery system, dust collection system, and electrical control system onto a single frame. Key components are configured with high-quality parts—the blast gun nozzles are made of high-wear boron carbide material for long service life; the filter cartridges use imported high-efficiency filter media for high filtration precision; the control system is centered around a programmable logic controller (PLC) with a touch-screen human-machine interface. The entire unit features a compact structure, small footprint, and low installation and transportation costs. The equipment is also equipped with multiple safety protection devices, including motor overload protection, air circuit under-pressure protection, and dust collector differential pressure alarm, ensuring long-term stable operation.

The performance advantages and application value of this HLT integrated sandblasting unit are exceptionally prominent. First, compact structure and space saving – the three major functions of blasting, recovery, and dust collection are integrated into one unit, eliminating the need for split installation and reducing the footprint by 40%~60% compared to traditional split-type equipment. Second, quick installation and low cost – the complete unit is assembled and tested at the factory; users simply connect power and air supply upon arrival to start operation, significantly shortening the installation cycle and reducing installation and transportation costs. Third, excellent sealing and environmental protection – the entire machine features an enclosed design with blasting operations carried out in a sealed chamber, preventing dust leakage; the built-in dust collection system efficiently filters dust-laden air with emissions meeting environmental standards. Fourth, automatic abrasive recycling – abrasive is automatically sorted and recycled through the recovery system, with convenient abrasive changeover, significantly reducing abrasive consumption costs. Fifth, easy operation and maintenance – the PLC touch-screen control system enables one-touch operation with parameter storage and recall; the rational structural design makes routine maintenance and wear part replacement quick and convenient.

In terms of application scope, this HLT integrated sandblasting unit is widely used in machinery manufacturing (surface cleaning and deburring of castings, forgings, and welded parts), automotive parts (blasting treatment of brake discs, engine cylinder blocks, gears, etc.), hardware products (rust removal and surface strengthening of fasteners, springs, and hardware tools), 3C electronics (matte finishing of mobile phone shells and laptop housings), mould manufacturing (mould cleaning and matte finishing after texturing), as well as medical devices, aerospace, and other precision component surface treatment applications. This HLT integrated sandblasting unit is an ideal choice balancing performance and cost advantages for surface treatment of small-to-medium workpieces.
